How a cylinder pump lifts water through the drop pipe

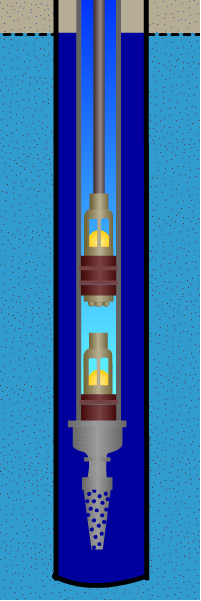

Cylinder pump idle

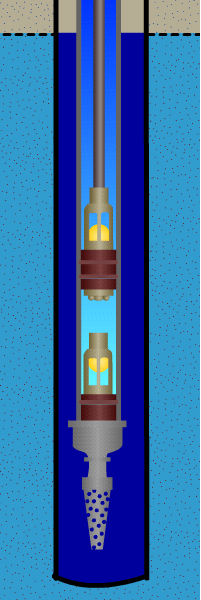

Up-stroke
Top of stroke
Down-stroke
Down-stroke
Water column held in place Water column is lifted Cylinder pump is filled Plunger returns down through cylinder Plunger nears the bottom
Plunger Valve - closed Plunger Valve - closed Plunger Valve - closed Plunger Valve - open Plunger Valve - open
Check Valve - closed Check Valve - open Check Valve - open Check Valve - closed Check Valve - closed

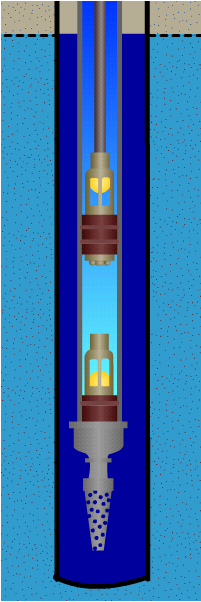

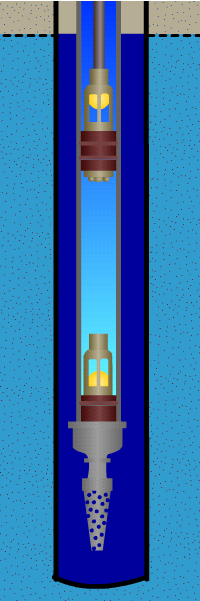

Aermotor cylinder pump at rest Aermotor cylinder pump begins the up-stroke Aermotor cylinder pump at the top of the stroke Aermotor cylinder pump as it begins the downstroke to refill the cylinder Aermotor cylinder pump midway on the downstroke
